JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel

JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel
JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel

Large Image :  JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel

Product Details:

Place of Origin: China
Brand Name: JHX
Model Number: JHX-180100S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden Case
Delivery Time: 10-15 work day
Payment Terms: T/T
Detailed Product Description
Product Model: JHX-180100S Laser Type: Hermetic And Detached CO2 Laser Tube
Laser Power: Option: 100W/130W/150W×2 Working Area(mm): 1800×1000
Software: JHX Professional Controlling Software Working Voltage: 220V±10%, 50-60HZ
Moving System: Imported Servo System Auxiliaries: Wind Pump, Wind Pipe Etc
Data Format: AI、BMP、PLT、DXF、DST
High Light:

vision laser cutting machine

,

laser cutting machine with camera

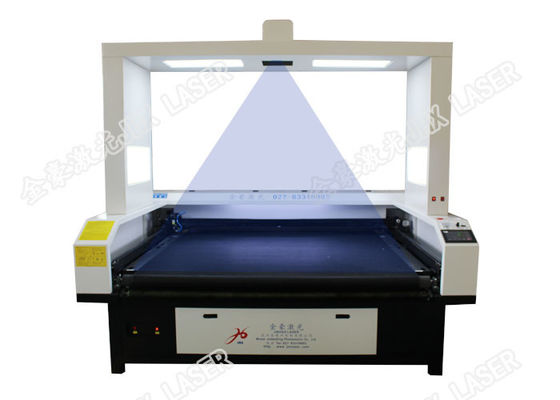

Vision Camera Laser machine for Sublimation Printed Athletic Apparel JHX-180100S
DESCRIPTION
Vision Laser Cutting Machine JHX Vision Scanning System aims to realize the seamless integration and highly automation of digital printing process. The design, grading and nesting are integrated into a system in the most cost-effective way. Finally, laser cuts the contour of dye-sublimation prints accurately.
Vision laser cutting machine is ideal for cutting digital printing sublimation textile fabrics of all shapes and sizes.

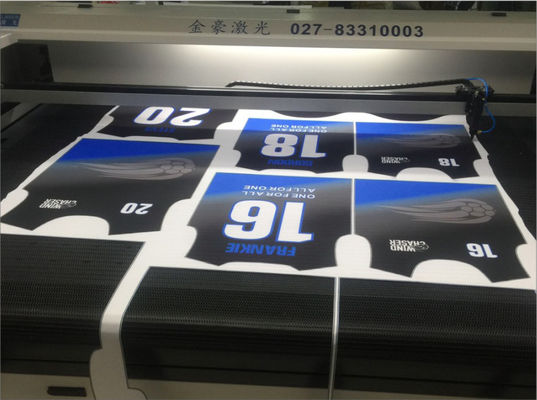

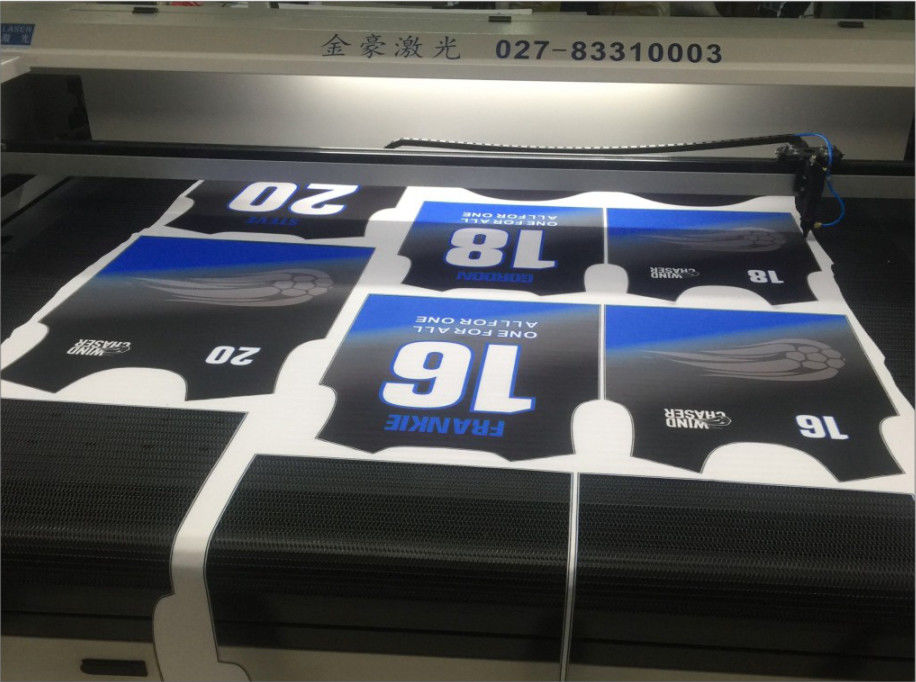

Cameras scan the fabric, detect and recognize printed contour, or pick up on printed registration marks and cut the chosen designs with speed and accuracy.
A conveyor and auto-feeder is used to keep cutting continuous, saving time and increasing production speed.

Step 1 Loading the dye-sublimated fabrics to the conveyor working table of laser cutter.
Step 2 HD Cameras scan the fabrics, detect and recognize the printed contour, and send the information to laser cutter.
Step 3 Set the cutting parameters. Press "start" button on laser cutter. Then the cutting machine will do cutting automatically.
Step 4 Laser cutting and repeat the while process.


Features
• Save tool cost and labor cost.

• Simplify the entire process. Automatic cutting from roll fabrics.
• High output (1000pcs of jersey per day per shift - only for reference)
• No required the original graphics files.
• High precision - accurately cut out any designs.
• Distortion compensation - Vision laser cutting system automatically compensates for any shrinkage or distortion that may occur during the sublimation process.
• Save tool cost and labor cost.


Material & Application
√ Sportswear (basketball jersey, football jersey, baseball jersey, ice hockey jersey)
√ T-shirt, polo shirt
√ Cycling apparel
√ Active wear, leggings, yoga wear, dance wear
√ Swimwear, bikinis.
√ Flags, banners
√ Home textile furnishing
√ Printed Toys

JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel 0
JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel 1
JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel 2
Technical specification

Product model

JHX-180100S

Laser TypeHermetic and detached CO2 laser tube
Laser Power

Option: 100W/130W/150W

Working Area(mm)

1800×1000

softwareJHX professional controlling software
CoolingWater-cooling
Cutting speed0-50000mmmin
Positioning accuracy≦±0.01mm
Cutting power controlFine tuning possible
Working Voltage220V±10%, 50-60HZ
Moving systemImported servo system
AuxiliariesWind pump, Wind pipe etc
Data FormatAI,BMP,PLT,DXF,DST


APPLICATION VIDEO


COLLOCATION
                Manual Feeder                                                     Auto Feeder
JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel 3            JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel 4


                             Laser machine for Sublimation Printed Athletic Apparel JHX-180100S

JHX - 180100S Cnc Laser Cutting Machine For Sublimation Printed Athletic Apparel 5
