Product Details:
Payment & Shipping Terms:
|
| Cutting Area 1600×2500mm: | 1600×2500mm | Working Voltage: | AC220V±5% / 50Hz |
|---|---|---|---|
| Machine Power: | 3500W | Type: | CO2 Glass Laser Tube |
| Accuracy: | ±0.2mm | Cooling System: | Constant Temperature Water Chiller |
| High Light: | 3500W Vision Camera Laser Machine,Vision Camera Laser Machine 2.5m,2.5m Co2 Ccd Camera Laser Cutter |
||
Material & Application
Woven fabrics for mechanical separation of solids and liquids are frequently manufactured for technical processes, and are often in continuous operation.
Cosplay
Jersey
Banner
Description:

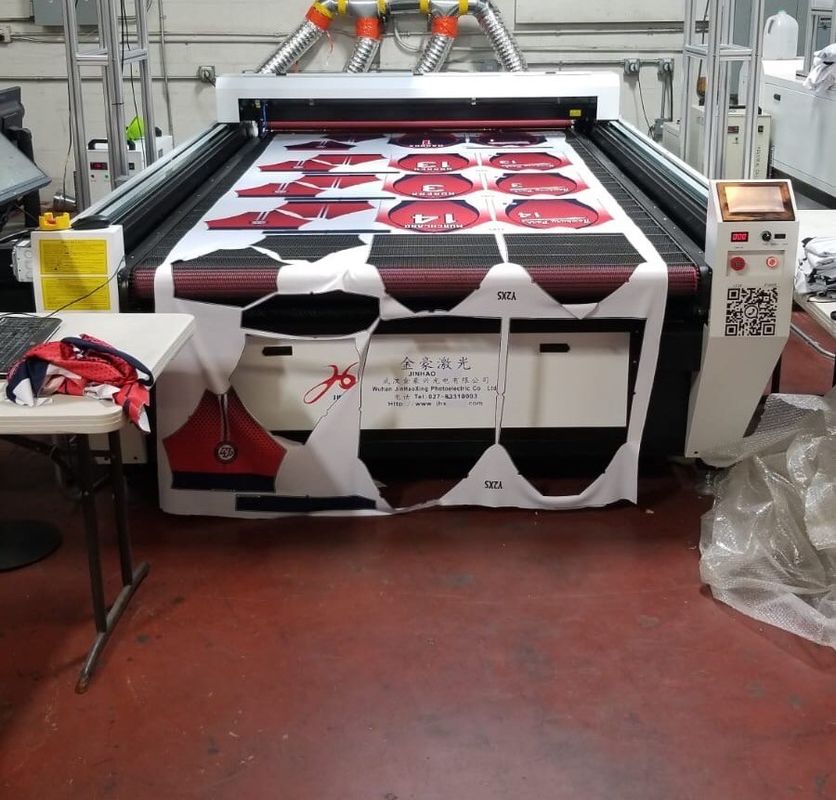

The laser machine with large working size, with TOP camera, it is good at cutting the sublimation fabric, banner, flag, etc.
Features
Automatic sealing of cutting edges prevents fringe
No tool wear - no loss of quality
No material fixation required due to contact-free and force-free processing
Complete exhaust and filtering of cutting emissions possible
High precision and accuracy of repeatability
Automated production process with conveyor and feeding systems
High flexibility in daily service due to various additional options
Marking systems in various variants
Laser cutter specification
Cutting area 1600×2500mm
Laser tube power 130W CO2 glass laser tube
Cutting speed 0-600mm/s(0-36M/per minute)
Working Voltage AC220V±5% / 50Hz
Machine power 3500W
Accuracy ±0.2mm
Working table Conveyor moving table
Moving system Jinhao Digital Control system
Cooling system Constant temperature Water chiller
Software Self-Develop Future updating is available
Image format AI,BMP,PLT,DXF,DST Etc.
