Product Details:
Payment & Shipping Terms:
|
| Product Model: | JHX-160100 S | Laser Type: | Hermetic And Detached CO2 Laser Tube |
|---|---|---|---|
| Laser Power: | Option: 80W/100W/130W/150W | Working Area(mm): | 1600x1000 |
| Software: | JHX Professional Controlling Software | Cooling: | Water-cooling |
| Cutting Power Control: | Fine Tuning Possible | Data Format: | AI、BMP、PLT、DXF、DST |
| High Light: | laser cutting machine for garments,fabric laser cutting machine |
||

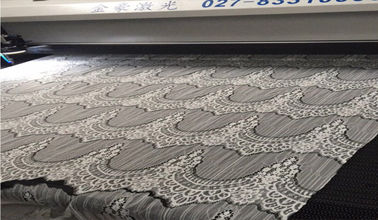

100% nylon lace Laser Cutting Machine for Knitted Lace Fabric Edges JHX-160100 S
DESCRIPTION
The laser cutter is for cutting lace of warp knitting process. Mainly used for home decoration such as curtains, window screens, tablecloths, sofa cushions.
Features
Widely application for all kinds of lace, embroidery lace high speed automatic cutting
Camera could recognize & follow the lace transformation to do automatic edge-tracking correction during weaving process, then realize full automatically feeding cutting
Compared with traditional manual work
High efficiency and good consistency
Good cutting edge
Reduce labor costs
Smoking and dust removal, healthy and eco-friendly
High added-value of products
Material & Application
Suitable for all kinds of lace positioning cutting
Apply to all kinds of underwear, wedding dresses, fashion cloth application
Technical specification
| Product model |
JHX-160100 S |
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | Option: 80W/100W/130W/150W |
| Cutting speed | 0-48000mmmin |
| Working Area(mm) | 1600x1000 |
| Cooling | Water-cooling |
| TOP Camera |
3M pix |
| software | JHX professional controlling software |
| Positioning accuracy | ≦±0.01mm |
| Working Voltage | 220V±10%, 50-60HZ |
| Moving system | Imported servo system |
| Data Format | AI,BMP,PLT,DXF,DST |
| Auxiliaries | Wind pump, Wind pipe etc |
APPLICATION VIDEO
COLLOCATION
100% nylon lace Laser Cutting Machine
