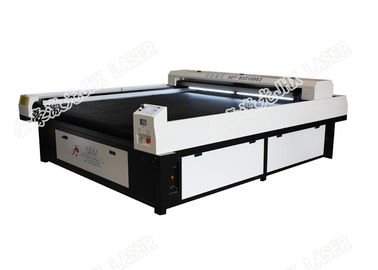

Multi Head Textile Laser Cutting Machine With Professional Controlling Software

Multi Head Textile Laser Cutting Machine With Professional Controlling Software
Multi Head Textile Laser Cutting Machine With Professional Controlling Software Multi Head Textile Laser Cutting Machine With Professional Controlling Software Multi Head Textile Laser Cutting Machine With Professional Controlling Software Multi Head Textile Laser Cutting Machine With Professional Controlling Software

Large Image :  Multi Head Textile Laser Cutting Machine With Professional Controlling Software

Product Details:
Place of Origin: China
Brand Name: JHX
Certification: CE
Model Number: JHX-160300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Case
Delivery Time: 10-15 work day
Payment Terms: T/T
Detailed Product Description
Product Model: JHX-160300S Laser Type: Hermetic And Detached CO2 Laser Tube
Laser Power: Option: 100W/130W/150W Working Area(mm): 1600×3000
Software: JHX Professional Controlling Software Cooling: Water-cooling
Moving System: Imported Servo System Data Format: AI、BMP、PLT、DXF、DST
High Light:

textile laser cutting machine

,

cnc textile cutting machine

Airbag auto laser cutting machine Fabric Woven Nylon Industrial Textile JHX-160300S

DESCRIPTION

Series is specialized to meet the need of high accuracy cutting for label industry. JHX automatic identification trademark cutting machine is our company's world-leading Logo automatic edge-tracking laser cutting. It can accurately cut all kind labels, including irregular label, printed label, electronic panel, mask, textile brand, woven label, cutting after embroidering of embroidery and etc. We can provide the Complete solution for label cutting.This series is specialized to meet the need of high accuracy cutting. To cooperate with our professional software, it can accurately cut and line, even repeatedly position, it is also can get high accuracy and smooth cutting. Drafting and pattern making at a heat, it can process superior difficulty image and figre.to increase productivity effect, to reduce working procedure.



Features

1. Steelwork structure, strong and stable, with high precision, satisfying the need of high-speed working;

2. Mixed optical route, high utilization ratio, that is very safe;

Simple design of fixed optical route ,it doesn` t need to maintain frequently;

3. The unique movement control system software , the working design procedure is perfect. To ensure that there isn`t over swing and delay when the laser head in adjusting;

4. Cooperate with the CAD, it can finish the immediate cutting. As for the 4 pictures is perfect.TO ensure that are beyond the cutting zone, it can process for another time, so that the automation of production is realized;

5. It has advantages in processing the special fabric.no hair-edge, high-effectiveness and high-speed;

6. Adopting specialized material transmission advice, the multilevel and seriate cutting can be realized.

7. Continuous feeding and laser cutting for extra-long material
8. Large area edge cutting and small area hollowing
9. High efficiency, saving materials and smart nesting optimization
10.High performance spreading, feeding and rewinding system
11.With high precision visual recognition system
12. Laser Cutting synchronized with marking
13. Leading pattern digitizing technology
14. Multi-head laser cutting



Material & Application

Fabric and cloth,leather,paper,wood,organic glass,plastics,rubber,plastic,composite material and etc

1.The cutting of the seamless adhesive materials like skiing waterproof coat, diving suit and etc. And the cutting of things for outdoor use like tent, sleeping bags, etc;

2.Single cutting of the special clothes like wedding dress, defense supplies for labor insurance, suit, fashionable dress, suit-dress and etc;

3.Cutting of special materials like air bag, trap valve,canvas,parachute,sofa,auto interior and etc, it can positioning hollowing;

4.Home textile, case and bag, carpet process, sample, sample cloth process;

5.Engraving of glass, that is no hurts of the original materials, save the manual and with high accuracy of repeat positioning.

Multi Head Textile Laser Cutting Machine With Professional Controlling Software 0

Multi Head Textile Laser Cutting Machine With Professional Controlling Software 1



Technical specification

Product model JHX-160300S
Laser Type Hermetic and detached CO2 laser tube
Laser Power Option: 100W/130W/150W
Working Area(mm) 1600×3000
Software JHX professional controlling software
Cooling Water-cooling
Cutting speed 0-50000mmmin
Location precision ≤±0.02mm
Cutting power control Fine tuning possible
Working Voltage 220V±10%, 50-60HZ
Moving system Imported servo system
Auxiliaries Wind pump, Wind pipe etc
Data Format AI,BMP,PLT,DXF,DST


APPLICATION VIDEO



COLLOCATION

                 Manual Feeder                               Auto Feeder(Single layer feeding)

Multi Head Textile Laser Cutting Machine With Professional Controlling Software 2      Multi Head Textile Laser Cutting Machine With Professional Controlling Software 3



     Auto Feeder(Two Layer Feeding)                             Red Light Pointer

Multi Head Textile Laser Cutting Machine With Professional Controlling Software 4      Multi Head Textile Laser Cutting Machine With Professional Controlling Software 5



  X axis Synchronous Pressing Device

Multi Head Textile Laser Cutting Machine With Professional Controlling Software 6

                                              Mask, textile brand, woven label, Laser cutting

Multi Head Textile Laser Cutting Machine With Professional Controlling Software 7
