Product Details:
Payment & Shipping Terms:
|
| Product Model: | JHX-200200G | Laser Type: | Fiber Laser |
|---|---|---|---|
| Working Area(mm): | 200x200 | Marking Area(mm): | ≦5 |
| Cooling: | Air-cooling | Marking Speed: | 0-120000mm\min |
| Marking Repeat Precision: | ≤±0.01mm | Pulse Frequency: | ≤100KHZ |
| Working Voltage: | 220v±10%, 50-60HZ | ||
| High Light: | fiber laser engraving machine,fiber laser marking machine |
||

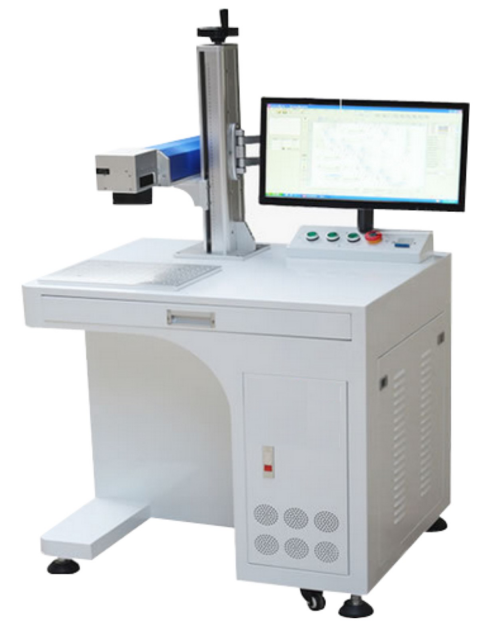

CE Approved 20W 30W Metal and Nonmetal Flying Fiber Laser Machine JHX-200200G
DESCRIPTION
Fiber Laser Marking Machine
1. The size of Diode side pump Laser Marking Machine is small. The volume is only 1/4 of thetraditional lamp pump laser.
2. The optical system uses the fully sealed structure to prevent the dust enters laser body and reduces the equipment failure rate.
3.The machine is able to preview the light path and point out the focus, which are very convenient for thematerials that will be processed to be located.
4. It provides the precise three dimension worktable and newest outside water cooling system. The cooling system can control the water temperature very accurately, which ensures the long time working. Anyway, the machine movement noise is extremely low.
5. The software own intellectual property rights. It is compatible with file formats saved by CORELDRAW, AUT OCAD, PHOTOSHOP and other software. It can mark autocode, sequence number, batch number, date, bar code, two-dimension code, etc. Anyway, the software can mark reversely.
Features
Fiber laser marking machine is the new generation laser marking system. With advanced laser techniques our company adopts fiber laser to output laser and achieves to marking function after high speed scanning oscillating mirror system. It has higher photoelectrical transfer efficiency. This model adopts air cooling way and the machine whole structure is small, the output beam is in good quality and high It is widely reliability.
1. Best Marking Effect:
the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines.
Especially good in smallest character marking, such as mark on IC chip.
2. Easily Operating:
Afford the specific coding software based on Windows, You can input and output by computer according to edit in the both of the specific 5.
coding software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
3. Deep Marking:
Perfect Laser’s Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum.
While YAG and Diode marking only could mark 0.2mm-0.3mm.
4. Compact:
The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
5. High Precision:
Re-position precision is 0.002mm.
Material & Application
Applicable Materials of logo printing fiber
Applies to metal materials, stainless steel, copper, brass, plastic, electroplating materials, coating materials, spraying materials, rubber, resin, ceramic and so on.
ApplicableProducts of logo printing fiber
The device is widely used in electronic components, communications equipment, automobile and motorcycle parts, instrumentation, military products, mechanical hardware, measuring and tools, etc
Technical specification
| Product model | JHX-200200G |
| Laser Type | Fiber Laser |
| Laser Power | Option: 20W/30W |
| Working Area(mm) | 200x200 |
| Marking Area(mm) | ≦5 |
| Cooling | Air-cooling |
| Marking speed | 0-120000mm/min |
| Marking Repeat Precision | ≤±0.01mm |
| Marking line width | ±0.01mm |
| Min character | 0.30mm |
| Auxiliaries | Wind pump, Wind pipe etc |
| Pulse Frequency | ≤100KHZ |
| Working voltage | 220v±10%, 50-60HZ |
APPLICATION VIDEO
COLLOCATION
CE Approved 20W 30W Metal Fiber Laser Marking Machine
