Product Details:
Payment & Shipping Terms:
|
| Product Model: | JHX-180100 IVS | Laser Type: | Hermetic And Detached CO2 Laser Tube |
|---|---|---|---|
| Laser Power: | Option: 80W/100W/130W/150W X4 | Working Area(mm): | 1800×1000 |
| Software: | JHX Professional Controlling Software | Cooling: | Water-cooling |
| Cutting Power Control: | Fine Tuning Possible | Working Voltage: | 220V±10%, 50-60HZ |
| Data Format: | AI、BMP、PLT、DXF、DST | ||
| High Light: | table top laser cutter,fabric cutting equipment |
||
car seat covers cutting Automotive Interiors laser cutter Upholstery Fabric JHX-180100 IVS
DESCRIPTION
JHX four heads laser cutting machine was researched and developed in response to market demand, to aim at specific industry such as toys, car cushion, wool collar, greeting cards. The outstanding feature is low lost, high efficiency and high payback. It is very suitable for mass production, while less place and labors are needed.
Features
1.It can line, cut and engrave on vector graphics;
2.The optical is optimized, you can mutually and flexibly move four laser heads in the processing zones, it is easy to operate and can save materials;
3.The cutting aperture is slight, and without scorched or brown edges, and it can lock stitch automatically;
4.To select feeding system, it can reach full automatic and high-speed mass production.
Material & Application
Leather,cloth, wool fabric, Plastic,rubber,film and etc.

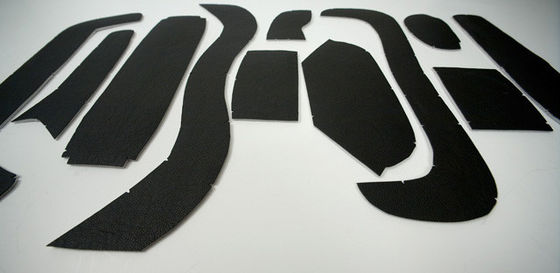

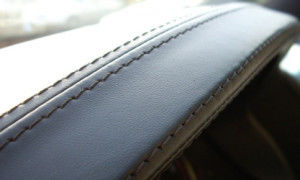

Toy, craft slippers, cushion, car interior trim, garment, fabric, leather, computer embroidery industry and etc.
Technical specification
| Model | JHX-180100 IVS |
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 80W/100W/130W/150W x4 |
| Cutting speed | 0-48000mmmin |
| Working Area(mm) | 1800×1000 |
| Cooling | Water-cooling |
| software | JHX professional controlling software |
| Positioning accuracy | ≤±0.01mm |
| Working Voltage | 220V±10%, 50-60HZ |
| Data Format | AI,BMP,PLT,DXF,DST |
| Auxiliaries | Wind pump, Wind pipe etc |
APPLICATION VIDEO
COLLOCATION

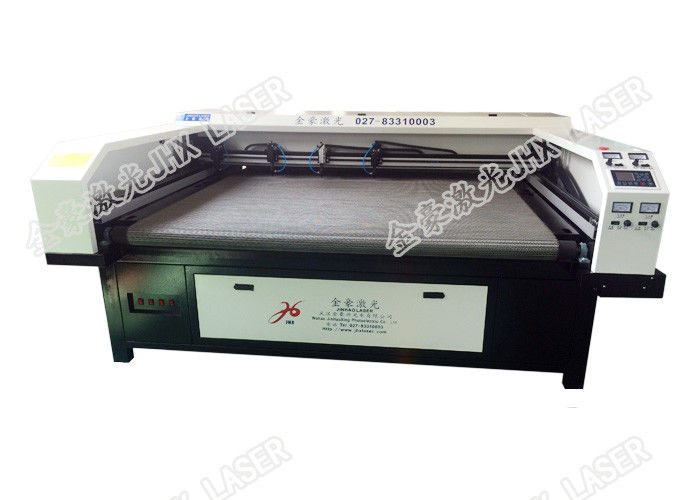

JHX four heads laser cutting machine
