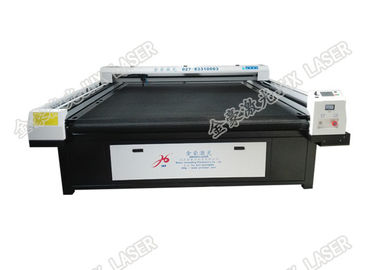

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area
Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area

Large Image :  Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area

Product Details:
Place of Origin: China
Brand Name: JHX
Model Number: JHX-250300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Case
Delivery Time: 10-15 work day
Payment Terms: T/T
Detailed Product Description
Product Model: JHX-250300S Laser Type: Hermetic And Detached CO2 Laser Tube
Laser Power: Option: 100W/130W/150W Working Area(mm): 2500×3000
Software: JHX Professional Controlling Software Cooling: Water-cooling
Cutting Speed: 0-50000mm\min Data Format: AI、BMP、PLT、DXF、DST
High Light:

automated fabric cutter

,

cnc textile cutting machine

Laser cutter for filter glass fiber polyester nonwoven fabric JHX-250300S

DESCRIPTION

Laser cutting systems for filters, filter materials, filter cloth, filter mats, filteration
Why Laser in Filter Industry:
Automatic sealing of cutting edges prevents fringe
No tool wear - no loss of quality
Complete exhaust and filtering of cutting emissions possible
High precision and accuracy of repeatability
Automated production process with conveyor and feeding systems
Marking systems in various variants

Modern filter materials are used for separation of products hazardous to the environment. In many cases the separated material is the intended product. Therefore the used filter materials as for example felts, fleece, paper and other fabrics have to be designed accordingly. Cutting of such fabrics with conventional methods is very complex, dust-intensive and costly, as the cutting edges often fringe and therefore an additional cutting edge has to be considered right from the beginning. Here the laser cutting system offers many advantages as for example immediately sealed cutting edges, no fringe, almost no dust and an optimal material utilization.



Features

1. Open-type wide area laser cutting bed.
2. Vacuum absorb conveyor working table with auto-feeding device, it is capable of fast and continuous cutting.
3. The cutting system can do super-long nesting and full format continuous auto-feeding cutting.
4. Smart nesting software is optional, it can do fast marker making in the most material-saving way.
5. 5-inch LCD screen CNC system. Supporting multiple data transmission. Enabling offline or online operation.
6. It is open design for simple, convenient and visual operation. Long focus to meet the needs of thick material cutting.
7. Following top exhaust suction system to synchronize laser head and exhaust suction system; good exhaust effects; saving energy.
8. CCD camera recognition system (optional) realizes automatic contour capturing cutting on the graphic of fabrics.



Material & Application

filter fleece, pressure belt filters, vacuum filters, round bag filters, bag filters, basket filters and bio-filters.

Woven fabrics for mechanical separation of solids and liquids are frequently manufactured for technical processes, and are often in continuous operation. Whether for the separation of contaminants or for cider plants in food production - filter media are always needed. Individual filter and large filter manufacture, as well as immediate availability of the materials for the operators are arguments enough for favoring the specific use of laser technology. Typical filter media are:

Polyethylene (PE)
Polypropylene (PP)
Polyester (PES)
Polyamide (PA)
Fibre glass
Fabric
Paper
Felt

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 0

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 1

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 2

Technical specification

Product model JHX-250300S
Laser Type Hermetic and detached CO2 laser tube
Laser Power Option: 100W/130W/150W
Working Area(mm) 2500×3000
Software JHX professional controlling software
Cooling Water-cooling
Cutting speed 0-50000mmmin
Location precision ≤±0.02mm
Cutting power control Fine tuning possible
Working Voltage 220V±10%, 50-60HZ
Moving system Imported servo system
Auxiliaries Wind pump, Wind pipe etc
Data Format AI,BMP,PLT,DXF,DST


APPLICATION VIDEO



COLLOCATION

                 Manual Feeder                               Auto Feeder(Single layer feeding)

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 3      Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 4



     Auto Feeder(Two Layer Feeding)                             Red Light Pointer

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 5      Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 6



  X axis Synchronous Pressing Device

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 7

                                                      Large Format Computerized Fabric Cutting

Large Format Computerized Fabric Cutting Machine 2500 × 3000mm Working Area 8
