Product Details:
Payment & Shipping Terms:
|
| Product Model: | JHX-210300S | Laser Type: | Hermetic And Detached CO2 Laser Tube |
|---|---|---|---|
| Laser Power: | Option: 100W/130W/150W | Working Area(mm): | 2100×3000 |
| Positioning Accuracy: | ≦±0.01mm | Cutting Power Control: | Fine Tuning Possible |
| Working Voltage: | 220V±10%, 50-60HZ | Auxiliaries: | Wind Pump, Wind Pipe Etc |
| Data Format: | AI、BMP、PLT、DXF、DST | ||
| High Light: | laser cutter bed,laser tube cutting machine |
||

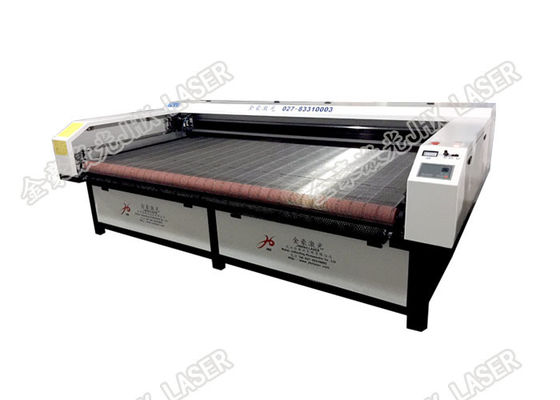

Carpets Artificial Grass Laser Flat Cutting Bed JHX-210300S
DESCRIPTION
This laser cutting machine could cut different format and different sizes of all carpet, mat. rug materials and artificial turf/artificial lawn/artificial grass. Its high efficiently cutting performance will improve your production quantity, save time and save cost.
Features
1.Open-type design.
2. Servo drive system. High efficiency and good processing effect. Particularly suitable for large format continuous cutting.
3. Vacuum absorb conveyor working table with auto-feeding device, it is capable of fast and continuous cutting of carpets.
4. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding and cutting.
5. Smart nesting software is optional, it can fast layout cutting graphics in the most material-saving way.
6. CNC 5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or online operation.
7. Laser heads are synchronized with exhaust system so that can totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine.
8. Red light positioning device, to avoid material skewing during feeding, ensures processing quality.
9. According to your requirement, you may select working areas
Material & Application
For cutting all kinds of marks like leather: wool fabrics,cloths,wooden products,plastics,rubber etc.
Textile embroideries,clothes,leather,cloth toys,computer embroideries cutting,cloth embroideries,shoes ,hot drill,light hollowing industry; Handicrafts , models, ads, decorations, electrical equipment, acrylic plates, medium-density decoration plates industry.
Technical specification
| Model |
JHX-210300S |
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 100W/130W/150W |
| Cutting speed | 0-40000mmmin |
| Working Area(mm) |
2100×3000 |
| Cooling | Water-cooling |
| software | JHX professional controlling software |
| Positioning accuracy | ≤±0.01mm |
| Working Voltage | 220V±10%, 50-60HZ |
| Data Format | AI,BMP,PLT,DXF,DST |
| Auxiliaries | Wind pump, Wind pipe etc |
APPLICATION VIDEO
COLLOCATION
Manual Feeder Auto Feeder

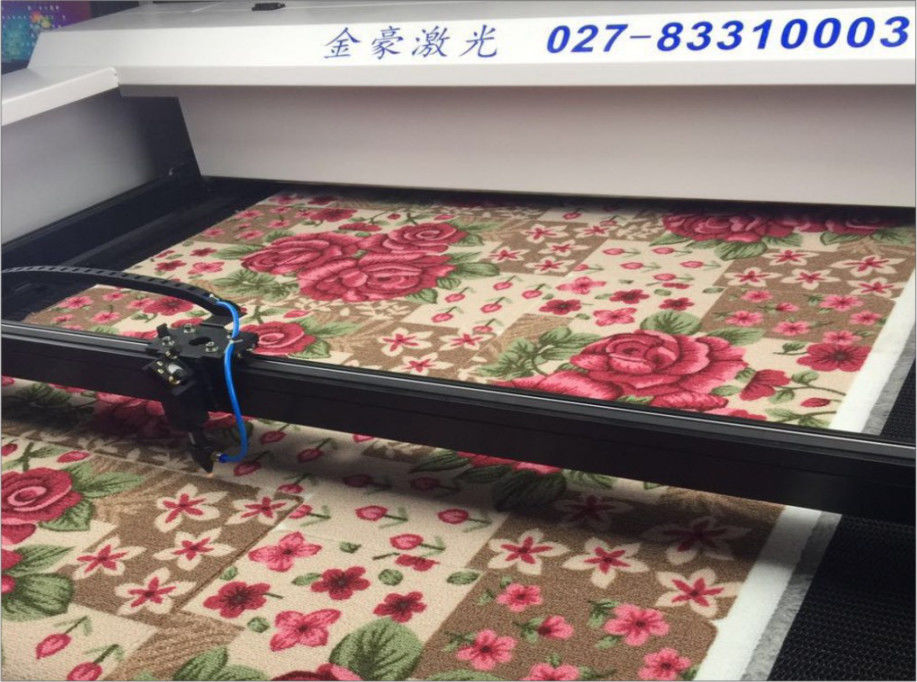

Cutting All carpet, mat. rug materials and artificial turf/artificial lawn/artificial grass
